BerleyPro BP2606 Garmin GT52 Side Vu Ready Transducer Mount

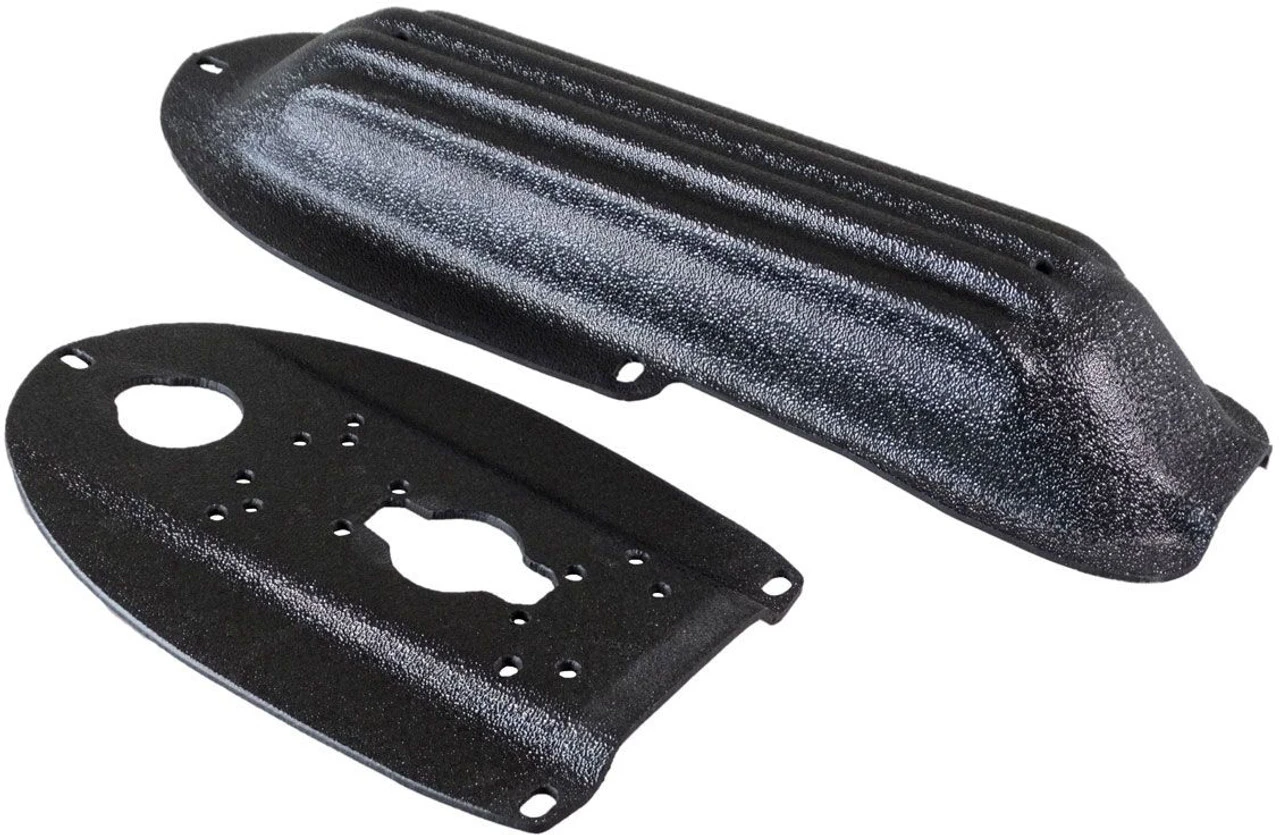

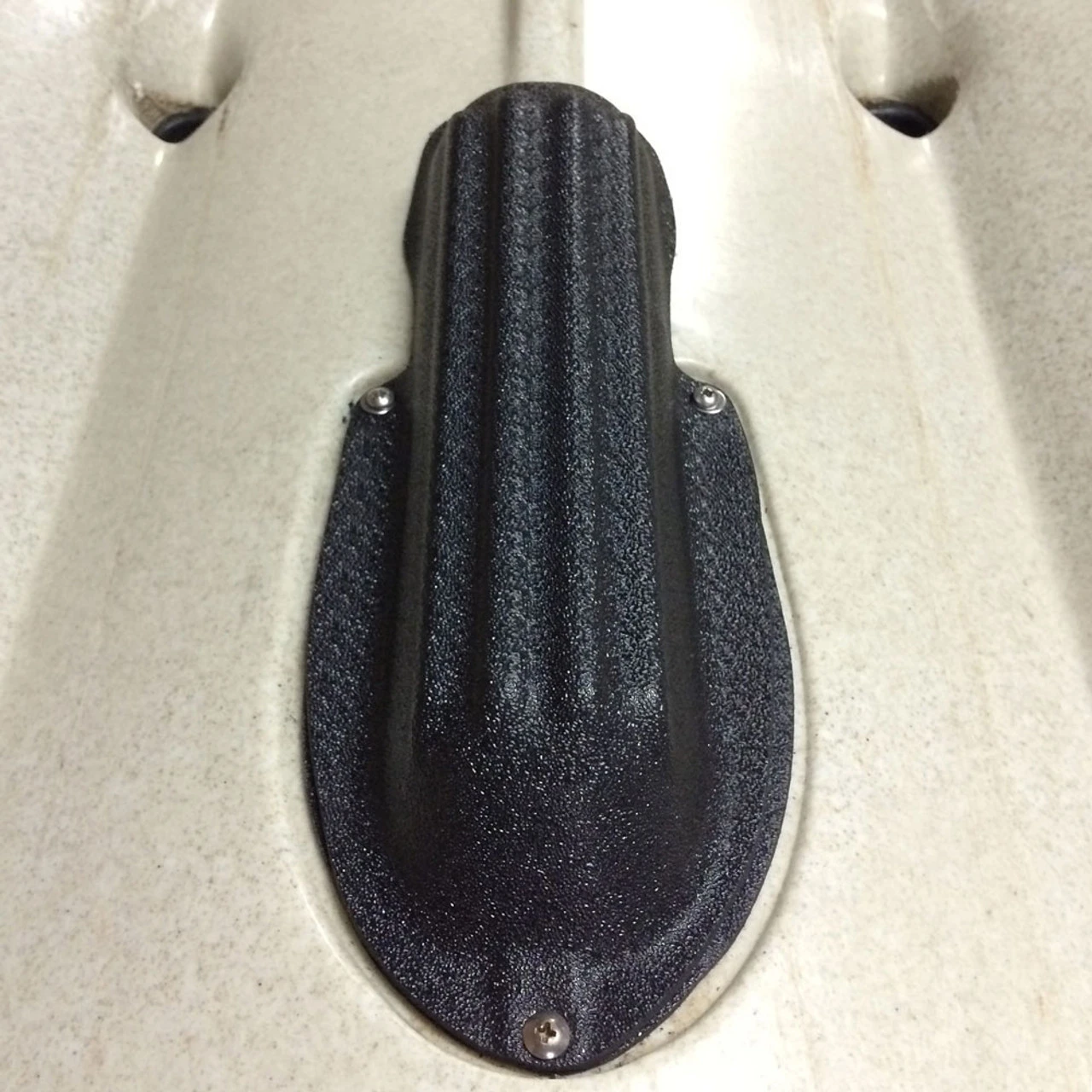

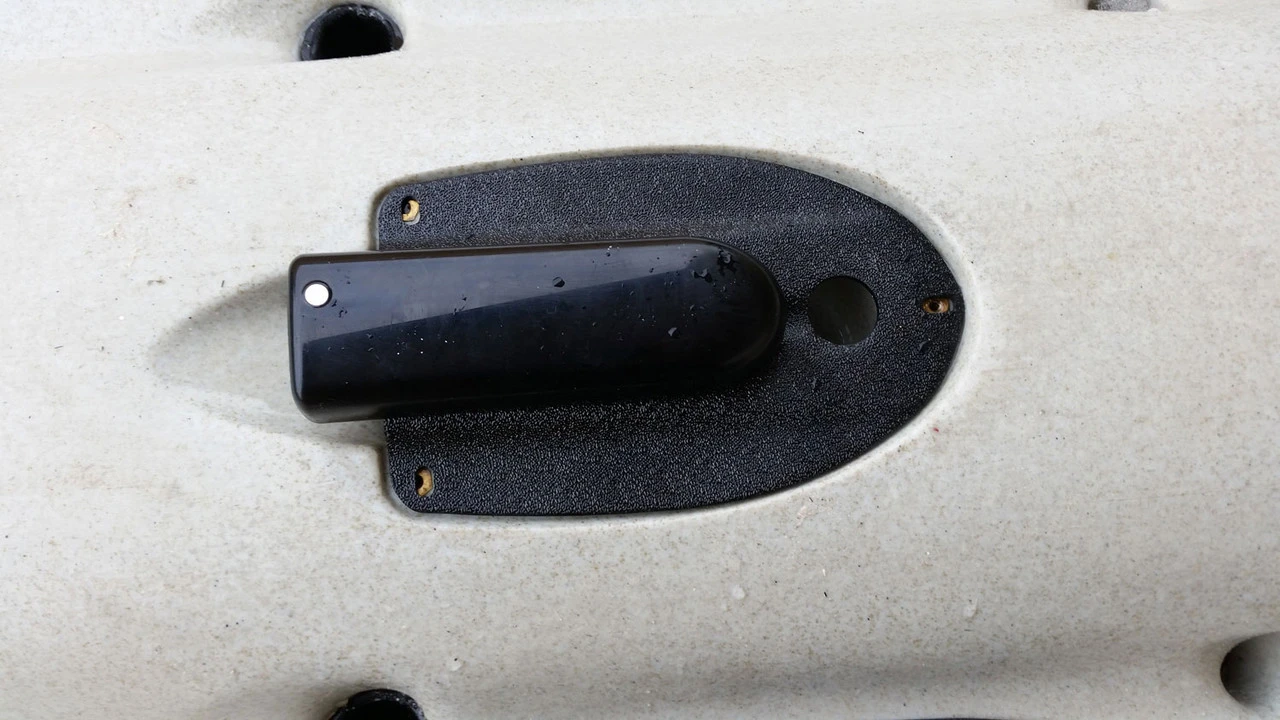

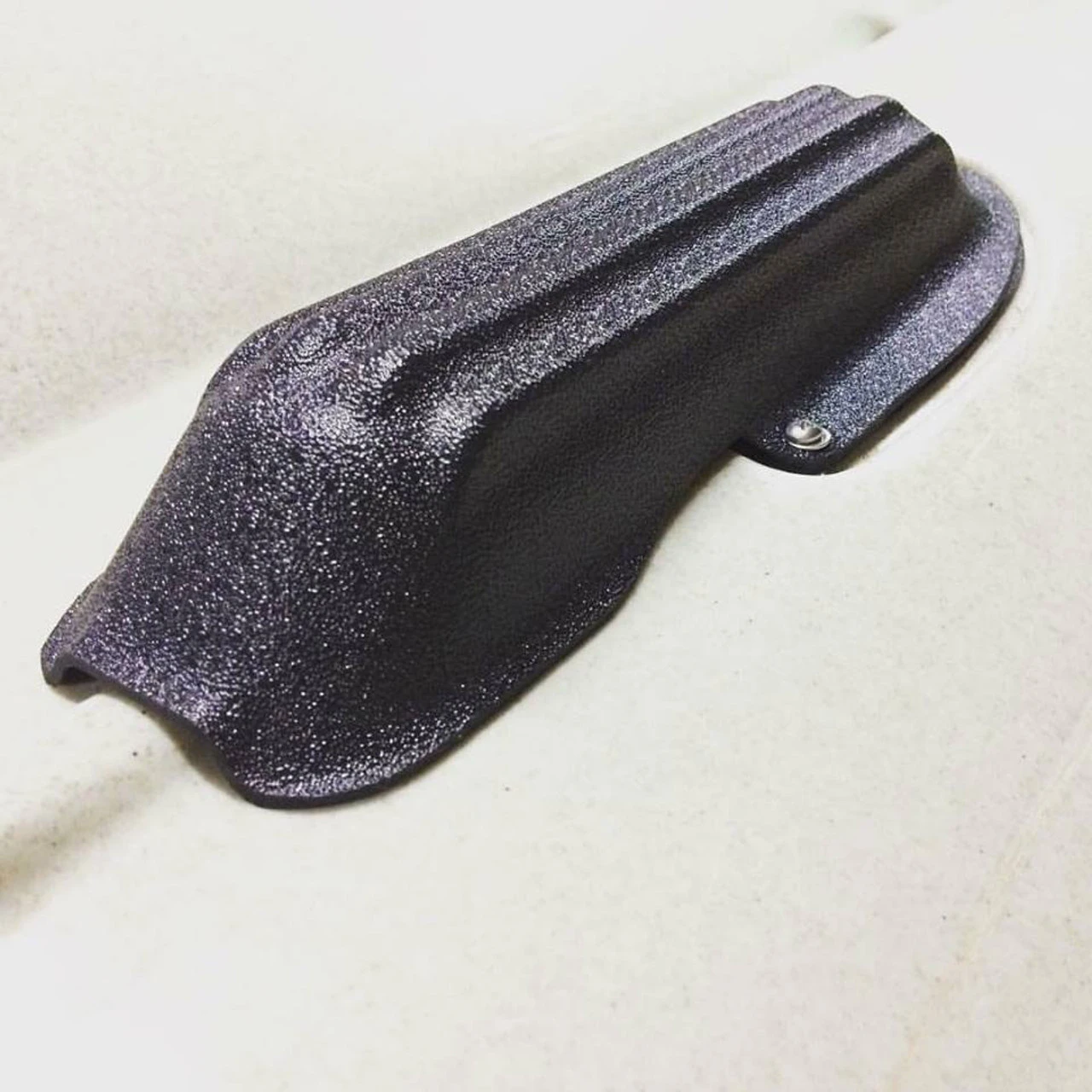

The BerleyPro BP2604 Garmin GT52 ready transducer mount fits in the existing Lowrance Ready location on the base of Hobie kayaks. With this transducer mount, you can mount and cover the GT52 transducer which comes with the Garmin Striker range, providing protection and also maintaining a crisp image with the side vu. Made from tough 3mm ABS plastic and includes the required stainless steel fasteners. Compatible with the GT52HW-TM Transducer (Part #010-12405-00)

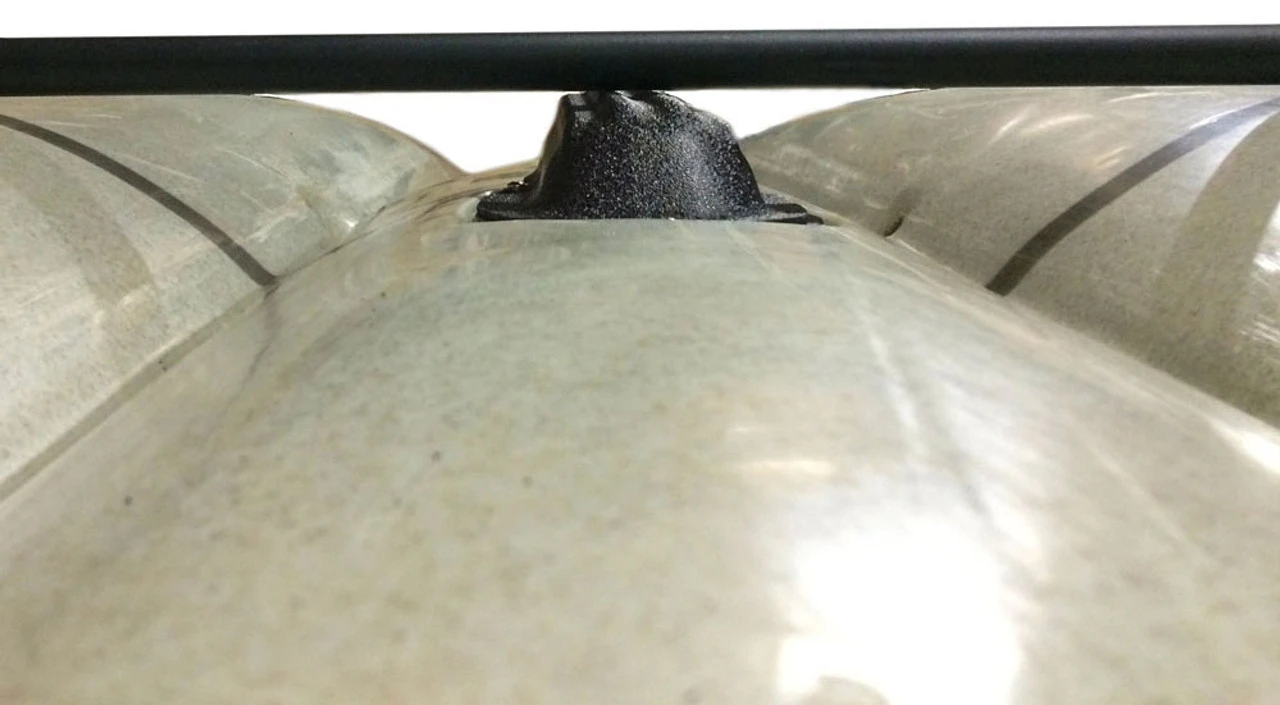

Side imaging requires the transducer to sit lower than the sides of the hull to not interfere with the image. The product image above shows a transducer mount sitting on a PA14. You can see that the height of the transducer sits at approximately the same height as the twin hull section at the rear. This extends below the hull on other Hobie models.
